Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line

1 set
MOQ
Negoziabile
prezzo
Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Imballaggi particolari: Scatola di legno
Materiale: POM, PC, PMMA
Vite: 65 mm
LD: 33:1
Motore: Siemens
Inverter: Abb
Design a vite: Single-Crew
Frigorimento a vite: Fan
Riscaldamento: Omron Elettrico
Voltaggio: 380V 50HZ 3Fase ((Personalizzato)
Grado automatico: Completo automatico
Servizio post-vendita fornito: Ingegneri disponibili per il servizio di macchinari all'estero, supporto online, supporto tecnic
Garanzia: 1 anno
Colore: Personalizzato
Controllare: Touch screen PLC+
Informazioni di base
Luogo di origine: Zhangjiagang
Marca: LB
Certificazione: CE / ISO
Numero di modello: LIBBRE
Termini di pagamento e spedizione
Imballaggi particolari: Pacchetto normale
Tempi di consegna: 45 giorni lavorativi
Termini di pagamento: L/c, t/t,
Capacità di alimentazione: 15 set al mese
Descrizione di prodotto

Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line


Application:
Widely used in industrial machinery parts ,electronics ,toys ,footwear and other industries

Technical parameter:
S.N Description Qty
1

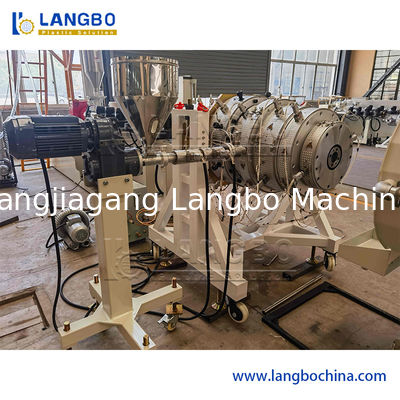

SJZ80/34 Single- screw extruder: one set


Screw dia: 80mm


Screw L/D:34:1


Screw type: special screw


Screw diameter: φ80mm,LD:34:1;Material: made of high quality nitride 38CrMoAIA,and are


nitration austerely according to NATIONAL STANDARD, nitration hardness:850-950HV;


Barrel: made of high quality nitride steel-38CrMoAI, nitration hardness:950-1050HV;


Main motor power: 110KW


Heater zone: 8 zones


Hopper dyer: one set


Automatic feeding system: one set



 1 set
2


POM Extrusion mould:


Mould body: 1 set


Sizing sleeve: copper


φ152mm, φ177mm


Wall thickness: 12mm


 1 set
3

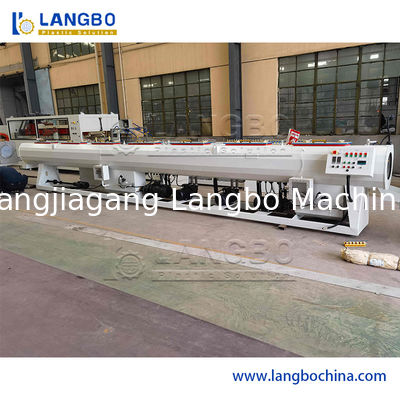

AFP-250 Vacuum Water Cooling Tank


effective vacuum length:6000mm


center height:1050mm±50mm


up and down movement distance±50mm


left and right movement distance±50mm


vacuum pump power:5.5KwX2


water pump power:4.0KwX2


forward and backward movement distance 600mm


forward and backward motor power:1.5KW


Equipped with water level and waer temperature automatic monitoring system


Water tank body adopts stainless steel



 1 set
4



AFP-250 Water Spraying Cooling Tank


effective vacuum length:6000mm


water pump power:4.0KwX1


Water tank body adopts stainless steel




 1 set
5



AFP-250 Four Pedrails Haul-off Machine



main motor power:4kw*2 (Inverter control for speed)


suitable pipe rangeФ50-250mm


the bottom pedrail is controlled by a motor for up & down lift, motor power: 0.75kw


the upper pedrail is controlled by pneumatic for up & down lift



 1 set
6


AFP-250 Dustless Saw cutting machine


Cutting blade: knife cutting


Rotary motor power:2.2kW


suitable pipe range:Ф50-250mm


Cutting knife is controlled by pneumatic



 1 set
7



AFP-250 Stacking unit


Effective length:3000mm




 1 set

Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line 0
Our Advantages:

1.With special design to the screw, makes the raw materials reach the good plasticizing and mixin effect


2.Bright and uniform finished product with automatic temperature control


3.Frequency inverter control


4.High efficiency and energy saving


5.Automatic fixed-length cutting, easy to operator


Plastic HDPE PPR Pipe Extruding Making Machine /PE Pipe Extruder Production Line 1

Our competitive advantages:


1.LangBo is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds,


integrating scientific research, development, manufacturing, sales and service.


2. The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with


advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and


constantly blaze new trails to meet the needs of customers. Products sell well all over the country and exported to many overseas countries and


regions won the trust of all parties, the product is in the same industry-leading position in the country.
