Name: 16mm~630mm PVC Pipe Making Machine China Factory Price
Brand: Zhangjiagang Langbo Machinery Co. Ltd.
SKU: LB-32
Price: 25,000.00 USD
Availability: InStock

Caratteristiche Galleria Descrizione di prodotto Valutazioni e recensioni Richieda una citazione

Caratteristiche

Specificazioni

Diametro del tubo: 75-250

Il potere di Extrusder: 55KW

Colore: Personalizzato

Pipa umbe: Doppio tubo

Materia prima: Polvere e additivi in PVC

Applicazione: Tubo di alimentazione dell'acqua

Voltaggio: 380V 50Hz o personalizzato

Grado automatico: In modo completo

Design a vite: Vite gemella e canna

Servizio post-vendita fornito: Ingegneri disponibili per i macchinari di servizio all'estero, installazione sul campo, messa in

Garanzia: 18 mesi

inverter: Abb

Colore: Personalizzabile

Materia prima: Polvere in PVC

MOTORE: Marchio Siemens

Contattore: Siemens o Schnider

Vite e canna: Estrusore a vite gemello conico

Diametro a vite: 65/132

Applicazione a tubo: Approvvigionamento idrico

Pacchetti: Film e scatole

Pagamento: T/T, L/C, Western Union

Tempi di consegna: 60 giorni

Evidenziare:

PVC pipe making machine 16mm-630mm

PVC pipe extrusion line factory price

PVC pipe machine China manufacturer

Informazioni di base

Luogo di origine: Zhangjiagang, Jiangsu

Marca: LB

Certificazione: CE ISO9001

Numero di modello: LB-32

Termini di pagamento e spedizione

Imballaggi particolari: Pacchetto normale

Tempi di consegna: 30 giorni lavorativi

Termini di pagamento: L/C, T/T

Capacità di alimentazione: 15 set al mese

Galleria

16mm~630mm PVC Pipe Making Machine China Factory Price

Descrizione di prodotto

16mm~630mm PVC Pipe Making Machine China Factory PriceShort desciption
We provide a range of plastic pipe production lines, including 16-630mm PVC/UPVC pipe lines, 16-1200mm HDPE pipe lines, as well as lines for PP/PPR pipes, HDPE/PP/PVC double-wall corrugated pipes, and single-wall corrugated pipes. These lines can produce pipes for various applications such as water supply, drainage, gas supply, and conduit wiring. Specifically, the PVC pipe production line manufactures PVC pipes of different diameters and wall thicknesses, widely used in agricultural water supply, drainage, and electrical conduits.

Application
The UPVC pipes produced find extensive use in both industrial and daily scenarios, including electrical conduits, water supply pipes, sewage pipes, home decoration, chemical transportation, and gas distribution lines. They boast high strength and rigidity, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety, low maintenance needs, and cost-effectiveness.

Producting process
PVC powder + additives → Mixing → Spring feeding → Twin-screw extruder → Mould and calibrator → Vacuum forming machine → Haul-off machine → Cutting machine → Stacker.

Specifications:

MODEL	PIPE DIAMETER (MM)	EXTRUDER MODEL	MOTOR POWER (KW)
LB-32F	16-32 (FOUR PIPE)	SJSZ65/132	37 AC
LB-32E	16-32 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-32W	16-32 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-40E	16-40 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-40W	16-40 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-50E	16-50 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-50W	16-50 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-63W	16-63 (DOUBLE PIPE)	SJSZ65/132	37 AC

Product detail
Mixer
Boasting a specialized design, the mixer reduces raw material self-friction, which enhances energy utilization efficiency. Equipped with a vacuum suction loading system, it operates with low noise and maintains a dust-free working environment.

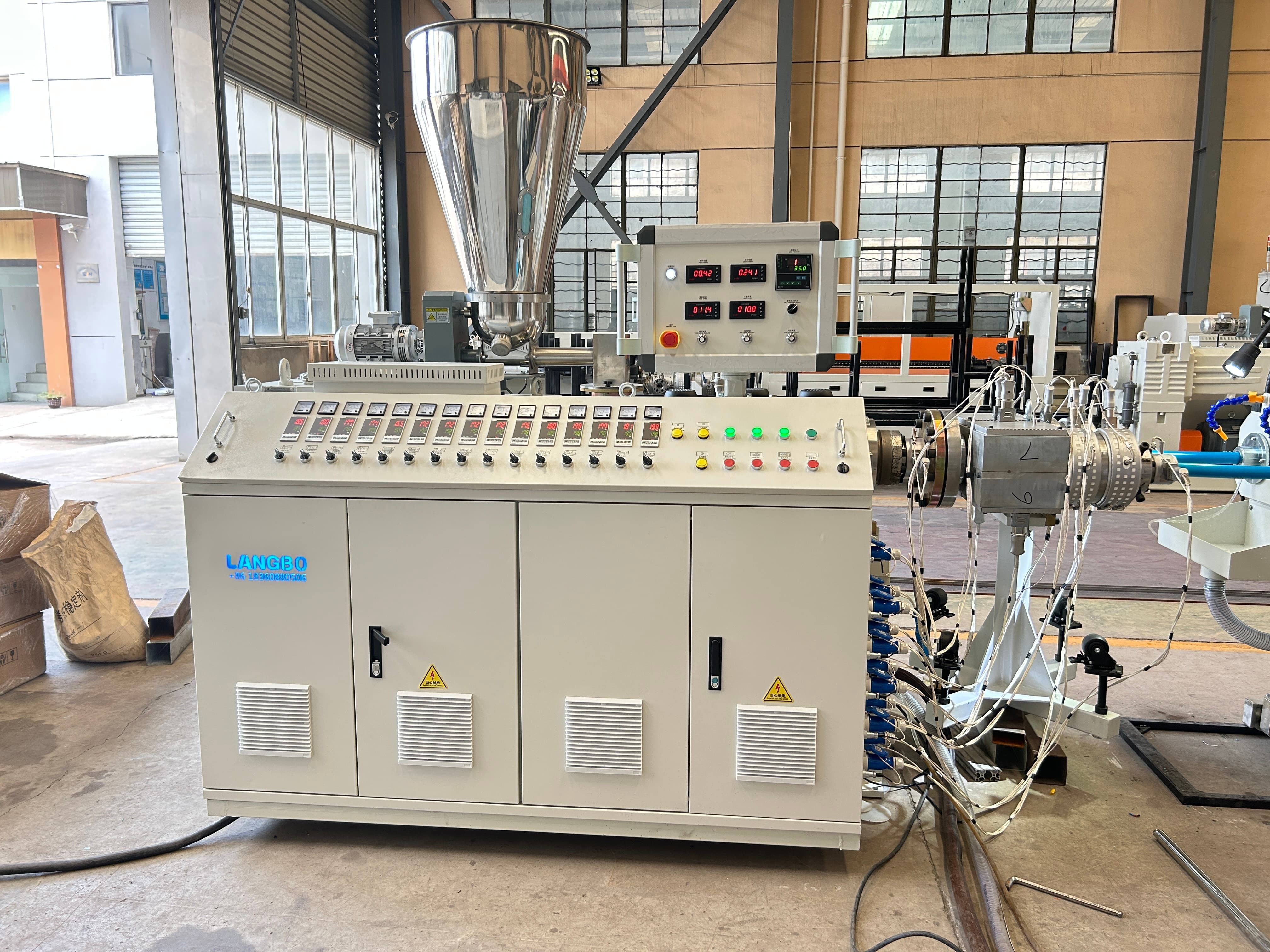

Twin screw extruder machine
Crafted with top-brand components, the extruder ensures stable production, high efficiency, and long-term durability. Its conical twin-screw design is tailored to raw material characteristics, enabling homogeneous mixing, superior plastification, and efficient conveying.

Vacuum Calibration & Cooling
The vacuum calibration tank features a two-chamber structure, integrating vacuum calibration and cooling functions. Both the vacuum tank and spraying cooling tank are made of 304 stainless steel. The high-performance vacuum system guarantees precise pipe sizing.

Haul-off Unit
Equipped with three caterpillar belts, the haul-off machine ensures stable movement of produced pipes. By adjusting the general control, it can be customized into tailored hauling modes to meet specific production requirements.

Cutting Unit
A high-precision encoder ensures accurate and stable cutting lengths. Controlled by a PLC system, it supports manual operation for cutting according to specific application needs.

Technical Features:

1- PLC control, high degree of automation

2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case

Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.
