PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine

1 set
MOQ
USD EUR
prezzo
PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Gearbo: Casella di cambio integrata
MOTORE: SIEMENS made in CHINA
Parti elettriche: Siemens o Schnider
Produzione: 800 kg/h
Cambio: Verticale integrato
Gamma di produzione tubi: 25-50mm
Evidenziare:

PVC braided hose making machine

,

fiber reinforced PVC pipe extruder

,

PVC garden pipe extrusion line
Informazioni di base
Luogo di origine: Zhangjiagang, Jiangsu
Marca: LB
Certificazione: CE ISO9001
Numero di modello: LB-65/28
Termini di pagamento e spedizione
Imballaggi particolari: Pacchetto normale
Tempi di consegna: 30 giorni lavorativi
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 15 set al mese
Descrizione di prodotto

PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine


Short Description
The Fiber Reinforced Pipe Extrusion Line is designed for producing multi-layer plastic composite pipes reinforced with high-strength polyester or glass fiber mesh.These pipes combine the corrosion resistance and smooth surface of plastic materials with the high mechanical strength of fiber reinforcement, making them ideal for applications in pressure water supply, irrigation, and industrial fluid transport.
The production line ensures stable extrusion, precise fiber winding, and excellent bonding between layers, resulting in pipes with high pressure resistance, low weight, and long service life.

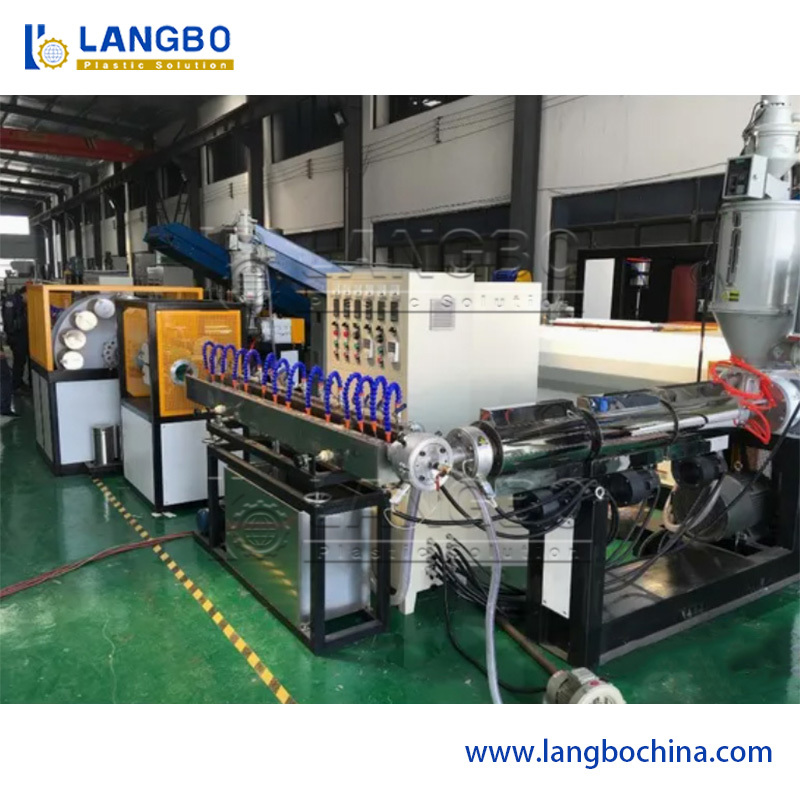

Processing Procss
Raw Material + Additive→Mixed Granulation→Delivery → Single Screw Extruder →Extrusion Die→Spray Cooling Water Tank→Belt Haul-Off→Fiber Winding Machine→Preheat the Oven→Second Single Screw Extruder→Extrusion Die→Spray Cooling Water Tank→Belt Haul-Off→Coiler

Specification
Model 45 55 65 75
Diameter Range
 6-16mm 8-25mm 12-20mm 20-50mm
Extruder Model
SJ45/30
SJ55/30
SJ65/30
SJ75/30
Extruder Capacity
30kg/h
50kg/h
80kg/h
100kg/h
Total Power
 35kw 42kw 50kw 65kw


Product Description

PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine 0PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine 1

PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine 2PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine 3
PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine 4PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine 5
PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine 6PVC Braided Fiber Reinforced Pipe/Hose Machine/PVC Garden Pipe Making Machine 7
Product Detail
Mixing and Granulation
Raw materials such as PVC or PE resin are mixed with stabilizers and additives, then granulated to form uniform pellets. This ensures stable plasticization and consistent pipe quality during extrusion.

Extrusion and Inner Layer Forming
The single screw extruder melts the granules and forms the inner pipe layer through a precision extrusion die. This layer provides the base structure and smooth internal surface.

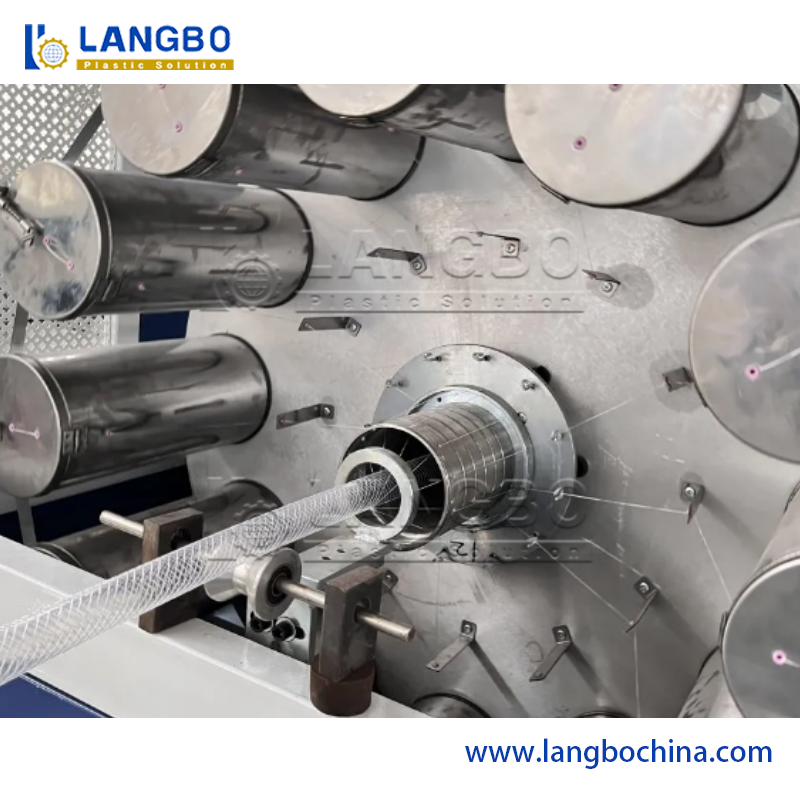

Fiber Reinforcement and Outer Layer Extrusion
A high-speed fiber winding unit wraps reinforced fiber evenly around the pipe, followed by a second extruder that coats and bonds the outer plastic layer. The result is a strong, pressure-resistant composite pipe.

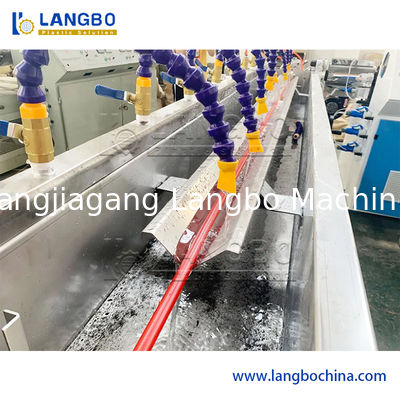

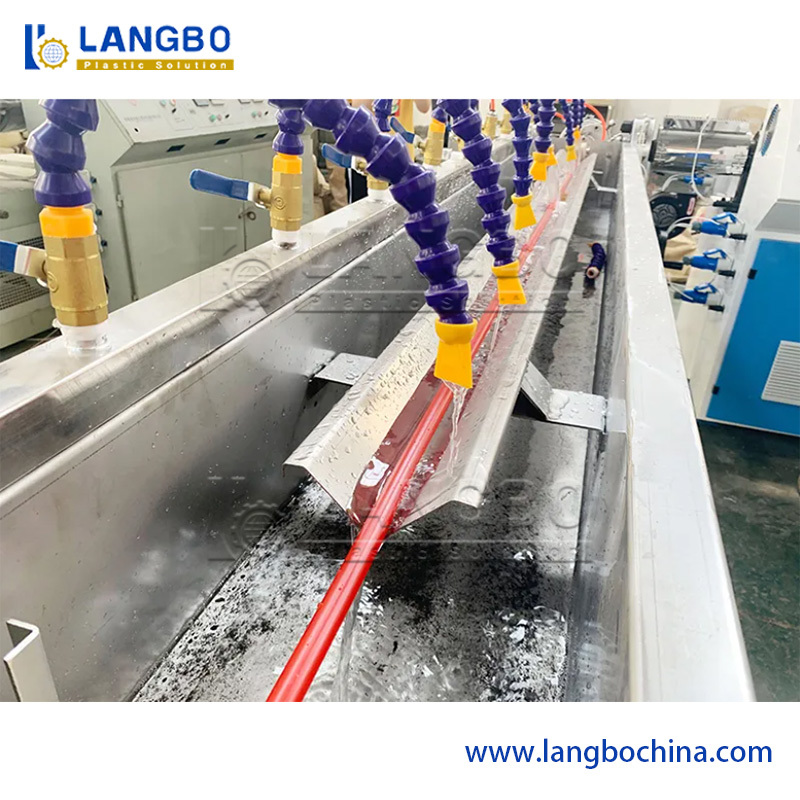

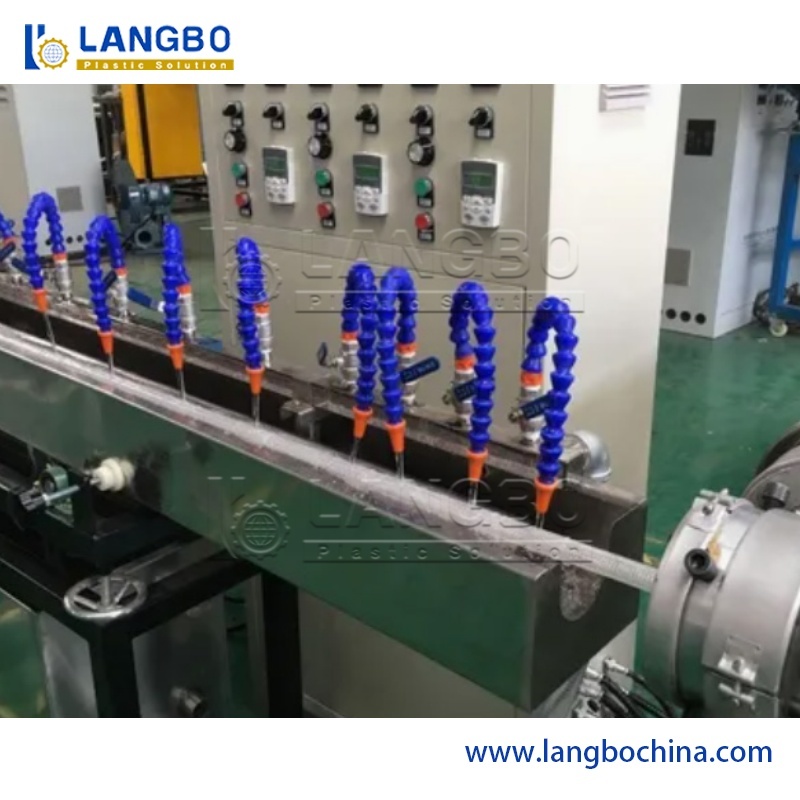

Water tank
The four meters long water tank ensures the produced pipe cooled and shaped with cold water spraying.

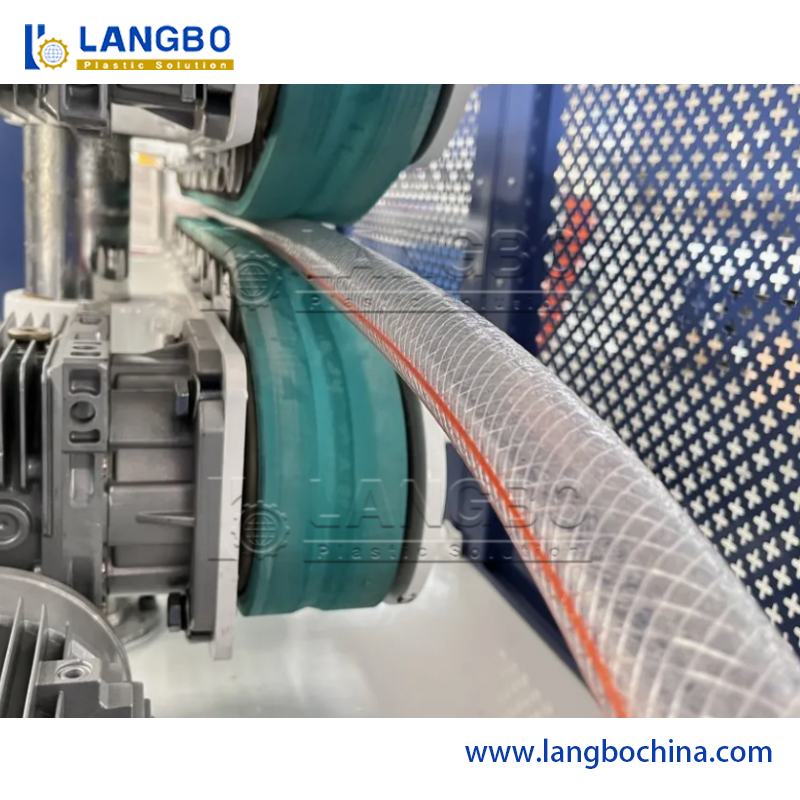

Belt haul-off
The two belt ensures the PVC braided tube moving forward stably and smoothly.

Heating oven
It will have two heating ovens for the complete extrusion line.

Double disk coiler
The produced PVC braided tube will be coiled by the winder machine. It will be much easy for the product transportation.

Final produced tube
It could be used as fire retardant tube.

Key Features
1.High-strength composite pipe structure with reinforced fiber mesh.
2.Excellent pressure resistance and long-term durability.
3.Stable extrusion and precise fiber winding synchronization.
4.Energy-efficient motors and temperature control system.

Delivery information
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
