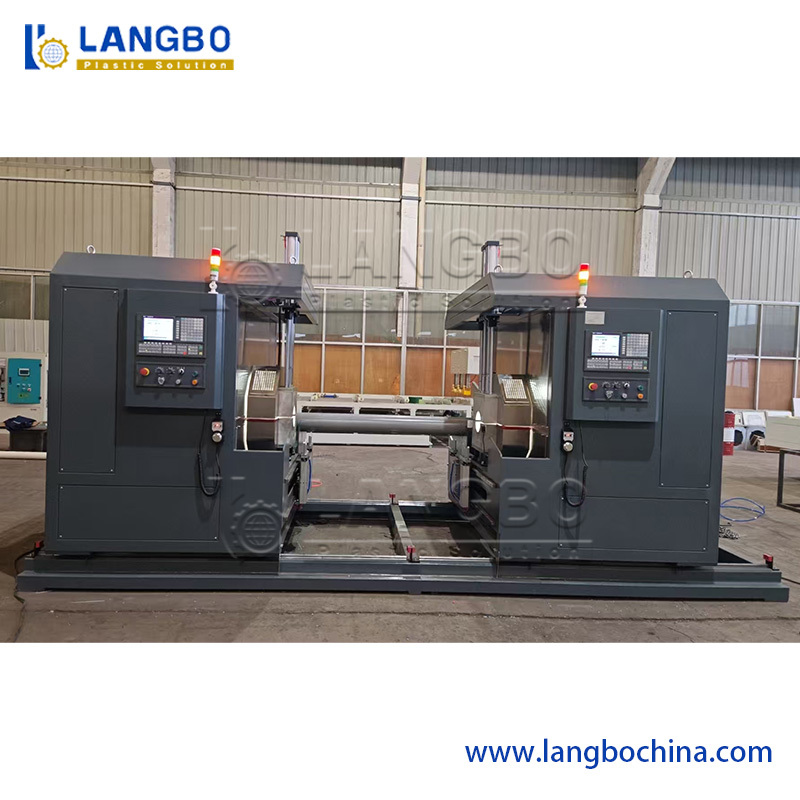

Plastic Extrusion Line Pipe Thread Cutting Machine
Dettagli del prodotto
| Diametro del tubo: | 16-630 | Il potere di Extrusder: | 55KW |
|---|---|---|---|
| Colore: | Personalizzato | Pipa umbe: | Doppio tubo |
| Materia prima: | Polvere e additivi in PVC | Applicazione: | Tubo di alimentazione dell'acqua |
| Voltaggio: | 380V 50Hz o personalizzato | Grado automatico: | In modo completo |
| Design a vite: | Vite gemella e canna | Servizio post-vendita fornito: | Ingegneri disponibili per i macchinari di servizio all'estero, installazione sul campo, messa in |
| Garanzia: | 2 anni | inverter: | Abb |
| Colore: | Personalizzabile | Materia prima: | Polvere in PVC |
| MOTORE: | Marchio | Contattore: | o Schnider |
| Vite e canna: | Estrusore a vite gemello conico | Diametro a vite: | 65/132 |
| Applicazione a tubo: | Approvvigionamento idrico | Pacchetti: | Film e scatole |
| Pagamento: | T/T, L/C, Western Union | Tempi di consegna: | 45 giorni |
| Metodo di spedizione: | Container via mare | ||
| Evidenziare |
PVC pipe extrusion machine,plastic pipe thread cutter,extrusion line pipe cutting |
||
Descrizione del prodotto
With an automatic CNC/PLC control system, this machine ensures accurate pitch control, smooth surface finish, and high processing efficiency, making it ideal for large-scale plastic pipe production lines.
Special thread-cutting tools provide uniform and accurate threads with clean edges.
Intelligent control for adjustable speed, pitch, and cutting depth ensures consistent results.
Adaptable to various pipe diameters and materials without frequent adjustments.
Servo-driven feeding ensures stable rotation and precise positioning during threading.
Heavy-duty base and vibration-damping structure enhance machining stability.
|
Parameter
|
Pipe Diameter Range
|
Applicable Materials
|
Thread Type
|
Max. Thread Length
|
Spindle Speed
|
Clamping System
|
Feeding System
|
|
Specification
|
16–160 mm (customizable)
|
PVC, PE, PP
|
Metric, BSP, NPT, Custom
|
20–100 mm
|
200–1200 rpm (adjustable)
|
Pneumatic / Mechanical adjustable chuck
|
Servo motor controlled feed
|

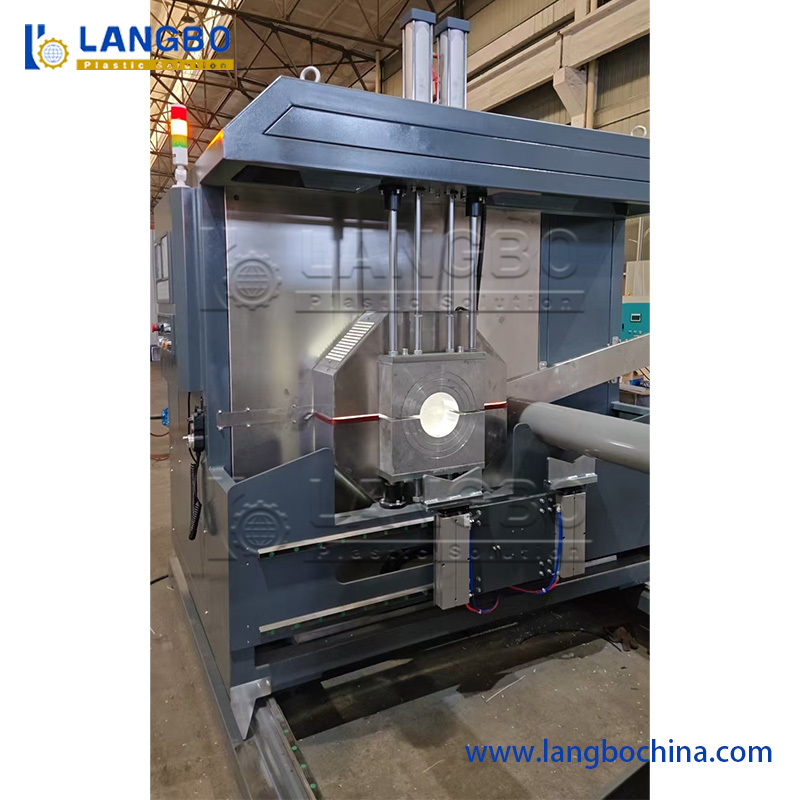

Pipe Clamping Device: Automatically centers and holds pipes securely.
CNC Thread Cutting Head: Precisely cuts external threads according to set pitch and depth.
Servo Feeding Unit: Controls the linear feed of the cutting tool.
Cooling / Lubrication System: Extends tool life and ensures smooth cutting.

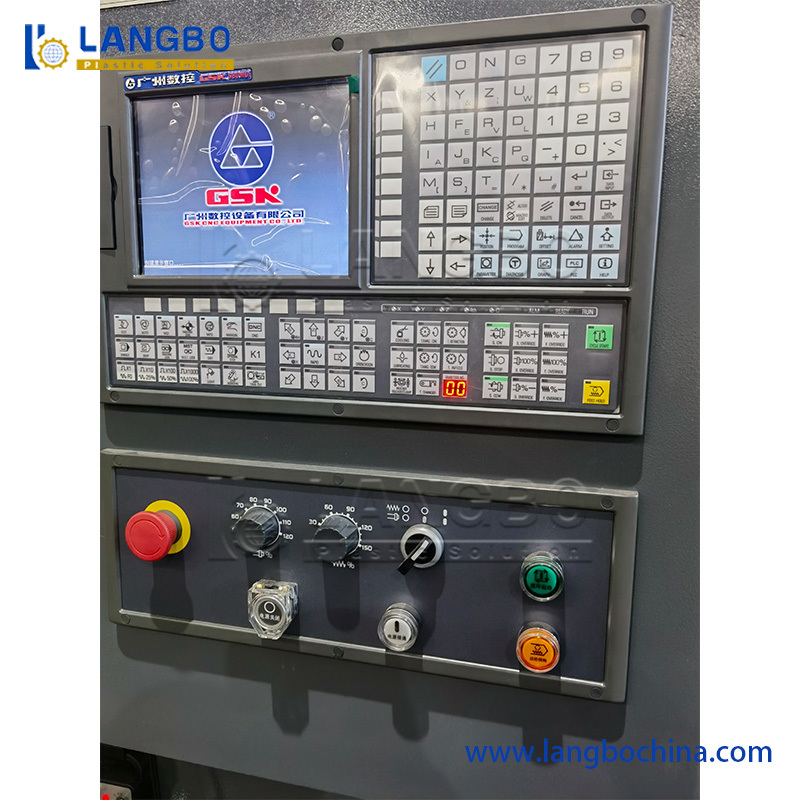

Control Panel: Touch screen or CNC system for full parameter adjustment.
CNC-controlled cutting head guarantees accurate thread pitch, depth, and alignment, ensuring perfect fit between pipe and fittings.
·Wide Material Compatibility
Suitable for various thermoplastics such as PVC, PE, and PP, with adjustable cutting parameters to match different material hardness and wall thickness.
·Stable and Durable Structure
Heavy-duty machine bed and vibration-resistant frame ensure stable operation even under long-term continuous use.
·Low Maintenance Requirement
Robust mechanical components and automatic lubrication reduce wear and simplify routine service.
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
