Name: 55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line for 1180mm Cable Trunking with 22KW Motor Power
Brand: Zhangjiagang Langbo Machinery Co. Ltd.
SKU: LB-1180
Price: 25,000.00 USD
Availability: InStock

Caratteristiche Galleria Descrizione di prodotto Valutazioni e recensioni Richieda una citazione

Caratteristiche

Specificazioni

Tipo di estrusore: 55/110 Extruster a vite gemella conica

Dimensione del profilo: 1180mm

Potenza del motore: 22 kW

Materia prima: Polvere e additivi in PVC

Trasporto: Due tracce indipendenti

Tabella di calibrazione: Otto Mters di lunghezza

Metodo di imballaggio: Pacchetto di box di legno e film

Dimensione del profilo: Secondo il disegno dei clienti

Tempi di consegna: Entro 90 giorni

Evidenziare:

55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line

1180mm Profile Size PVC Cable Trunking Extrusion Line

22KW Motor Power Conical Twin Screw Extruder

Informazioni di base

Luogo di origine: Zhangjiagang

Marca: LB

Certificazione: CE,ISO9001

Numero di modello: LB-1180

Termini di pagamento e spedizione

Imballaggi particolari: Pacchetto standard

Tempi di consegna: 45 giorni lavorativi

Termini di pagamento: L/C, T/T

Capacità di alimentazione: 15 set al mese

Galleria

55/110 Conical Twin Screw Extruder PVC Profile Extrusion Line for 1180mm Cable Trunking with 22KW Motor Power

Descrizione di prodotto

PVC Cable Trunking Profile Extrusion Line

This specialized PVC profile cable trunk production line is engineered for manufacturing various PVC profiles including window and door profiles, ceiling panels, and cable trunking systems. Custom solutions and molds are developed based on specific profile drawings.

Production Process

PVC powder + additives → mixing
Material feeding → twin screw extrusion
Molding and calibration → vacuum forming
Haul-off → cutting → discharge racking

Key Features

Conical twin screw extruder compatible with both PVC powder and granules
Integrated degassing system for superior material plasticization
High-speed mold technology for enhanced productivity
Comprehensive PLC control system for centralized operation

Technical Specifications

Model	LB180	LB240	LB300	LB600
Max Product Width (mm)	180	240	300	600
Screw Model	SJ55/110	SJ65/132	SJ65/132	SJ80/156
Motor Power	22KW	37KW	37KW	55KW
Cooling Water (m³/h)	5	7	7	10
Compressor (m³/h)	0.2	0.3	0.3	0.4
Total Length (m)	18	22	22	25

Conical Twin Screw Extruder

Engineered specifically for processing dry PVC powder blends, our conical twin screw extruder ensures homogeneous mixing, superior plastification, and optimal conveying efficiency. The permanent magnet synchronous motor delivers high energy efficiency, while the integrated PLC system enables centralized control of the entire production line.

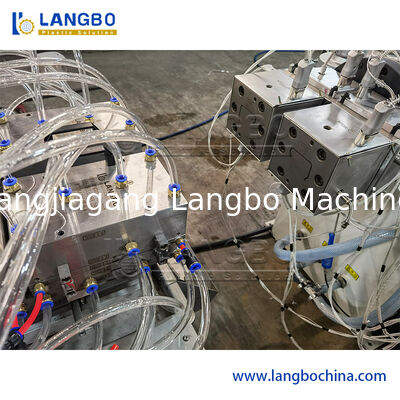

Plate Mould System

Features double-strand mold technology for PVC trunking production, significantly increasing output capacity. Advanced channel design provides exceptional flow performance, and precision manufacturing guarantees high-accuracy profile production.

Calibration Table

Constructed with a robust steel frame and SUS 304 stainless steel body, the calibration table incorporates multi-dimensional position adjustment. Strategic placement of water pumps and vacuum calibrators ensures rapid shaping and cooling of PVC profiles, with sufficient length for complete profile formation.

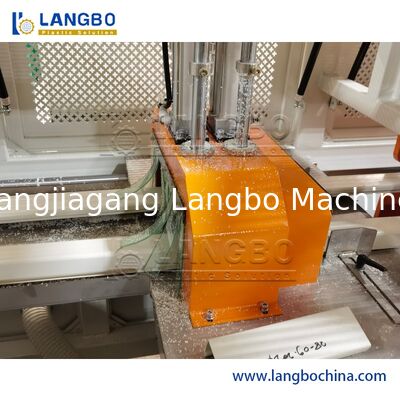

Haul-off & Cutting System

Even force distribution across caterpillar tracks delivers consistent hauling power. High-quality rubber components ensure reliable performance, while pneumatic pressure systems facilitate easy adjustment and product protection. Customizable cutting options include swarf-free and saw cutting methods.

Production Line Components

Complete Production Line

Twin Screw Extruder

Calibration System

Haul-off & Cutting Unit
