Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production

1 insieme
MOQ
Negotiable（USD EUR）
prezzo
Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production
Caratteristiche Galleria Descrizione di prodotto Valutazioni e recensioni Richieda una citazione
Caratteristiche
Specificazioni
TIPO DI PRESA: Tipo U & R
Diametro del tubo: 16 ~ 630 mm
Potenza del motore principale: 18,5-90 kW
Peso della macchina: 500 kg - 1500 kg
Modello di estrusore: SJSZ63/132
Gamma di diametri di campana: 20mm-630mm
Sistema di controllo: Controllo PLC con touch screen
Modalità di funzionamento: Automatico/Semiautomatico
Informazioni di base
Luogo di origine: Zhangjiagang
Marca: LB
Certificazione: CE ISO
Numero di modello: LIBBRE
Termini di pagamento e spedizione
Imballaggi particolari: Pacchetto normale
Tempi di consegna: 45 GIORNI LAVORATIVI
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 15 set al mese
Descrizione di prodotto

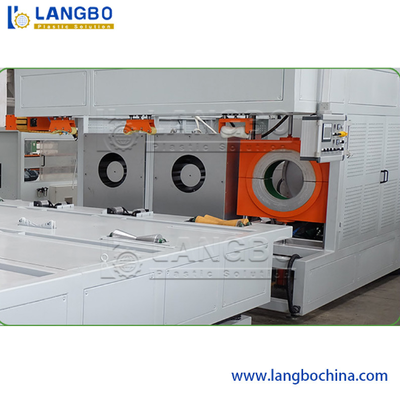

Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production
Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor-controlled bracket height adjustment for easy operation. This system is configured with a material-receiving pulling device and related process interfaces that can work both in conjunction with the main machine or operate independently.

  • Horizontal pipe movement ensures stable, accurate actions without damaging pipes
  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace includes central heating furnace core
  • Expansion tube head shaping method provides precise nozzle dimensions
  • Control panel features conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Convenient tube expansion method selection with strong craft adaptability
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Out Diameter) Φ 20-630mm
Belling Type R type & U type
Used Oil Label No. 40/hydraulic oil
Quantity of Heater 2
Highest Temperature in Heater 280°C
Gas Pressure 0.6~0.8Mpa
Water Pressure 0.2~0.3Mpa
Pipe Length 3-6m
Center Height 900mm± 50mm
Machine Dimensions 8615x3125x2500mm
Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production 0 Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production 1 Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production 2 Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production 3
Our Service Commitment

After machine completion and before delivery, we will notify customers to check the trial run. Upon machine arrival at the customer's factory, we will send engineers to install the equipment, perform debugging, and provide comprehensive worker training as needed.

Company Introduction

ZHANGJIAGANG LANGBO MACHINERY CO., LTD is located in Zhangjiagang city, conveniently accessible within 2 hours from Shanghai and 40 minutes from WUXI airport.

Our company specializes in supplying various plastic machinery including plastic washing recycling machines, plastic granulating machines, plastic pipe extrusion machines, and related auxiliary equipment. With over 20 years of experience and continuous development in this field, we have accumulated extensive expertise and professional technology in providing comprehensive solutions from technical design to extrusion manufacturing.

We are committed to offering customers high-quality machines at competitive prices with responsive after-sales service available at any time.
