PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications

1 insieme
MOQ
Negotiable（USD EUR）
prezzo
PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications
Caratteristiche Galleria Descrizione di prodotto Valutazioni e recensioni Richieda una citazione
Caratteristiche
Specificazioni
Tipo di estrusore: Macchine per l'estrusione a doppia vite coniche
Altezza centrale: 1000 mm
Tipo di prodotto: Tubo in PVC/PE
Potenza del motore: 75 chilowatt
Garanzia: 18 mesi dalla spedizione della macchina
Pacchetti: Film e scatole
Colore: Personalizzato
Vite nessuna: Fabbricazione a base di fibre sintetiche
Utilizzo: linea dell'estrusione
rapporto di prova del macchinario: Fornito
Velocità a vite: 0-60 giri/min
Automazione: Automatico
Informazioni di base
Luogo di origine: ZHANGJIAGANG, JIANGSU
Marca: LB
Certificazione: CE ISO9001
Numero di modello: LB-32
Termini di pagamento e spedizione
Imballaggi particolari: Pacchetto normale
Tempi di consegna: 30 giorni lavorativi
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 15 set al mese
Descrizione di prodotto
PVC/PE Threading Machine | Customizable Thread Pitch Suitable For Various Pipe Specifications

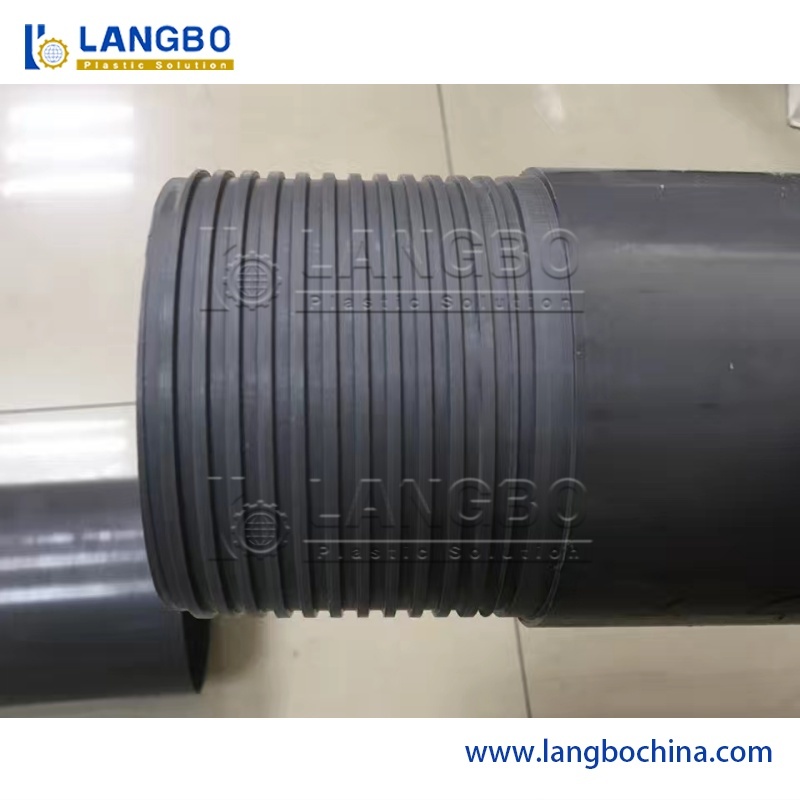

This machine is specialized equipment designed for cutting external threads on pre-extruded PVC, PE, or PP pipes. It is typically used after the extrusion process, providing precise and clean thread profiles for pipe connections, couplings, and fittings.

With an automatic CNC/PLC control system, this machine ensures accurate pitch control, smooth surface finish, and high processing efficiency, making it ideal for large-scale plastic pipe production lines.

Technical Features
  • High Precision Threading Cutting - Special thread-cutting tools provide uniform and accurate threads with clean edges
  • CNC / PLC Control System - Intelligent control for adjustable speed, pitch, and cutting depth ensures consistent results
  • Universal Pipe Clamping System - Adaptable to various pipe diameters and materials without frequent adjustments
  • Automatic Centering and Feeding - Servo-driven feeding ensures stable rotation and precise positioning during threading
  • Durable and Low-Noise Operation - Heavy-duty base and vibration-damping structure enhance machining stability
  • User-Friendly Interface - Touch screen operation with multiple preset thread standards
Specifications
Parameter Specification
Pipe Diameter Range 16-160 mm (customizable)
Applicable Materials PVC, PE, PP
Thread Type Metric, BSP, NPT, Custom
Max. Thread Length 20-100 mm
Spindle Speed 200-1200 rpm (adjustable)
Clamping System Pneumatic / Mechanical adjustable chuck
Feeding System Servo motor controlled feed

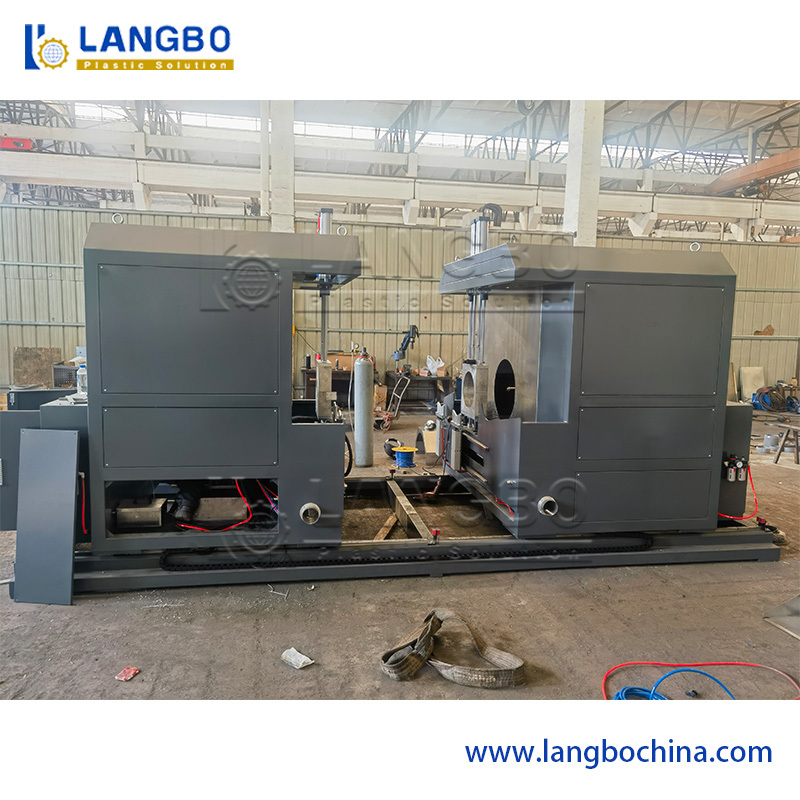

Machine Composition

Main Machine Base: Rigid welded structure for stable operation

Pipe Clamping Device: Automatically centers and holds pipes securely

CNC Thread Cutting Head: Precisely cuts external threads according to set pitch and depth

Servo Feeding Unit: Controls the linear feed of the cutting tool

Cooling / Lubrication System: Extends tool life and ensures smooth cutting

Control Panel: Touch screen or CNC system for full parameter adjustment

Our Advantages
  • Precise Thread Forming - CNC-controlled cutting head guarantees accurate thread pitch, depth, and alignment, ensuring perfect fit between pipe and fittings
  • Wide Material Compatibility - Suitable for various thermoplastics such as PVC, PE, and PP, with adjustable cutting parameters to match different material hardness and wall thickness
  • Stable and Durable Structure - Heavy-duty machine bed and vibration-resistant frame ensure stable operation even under long-term continuous use
  • Low Maintenance Requirement - Robust mechanical components and automatic lubrication reduce wear and simplify routine service
Product Images
PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications 0 PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications 1 PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications 2 PVC/PE Threading Machine| Customizable Thread Pitch Suitable For Various Pipe Specifications 3
